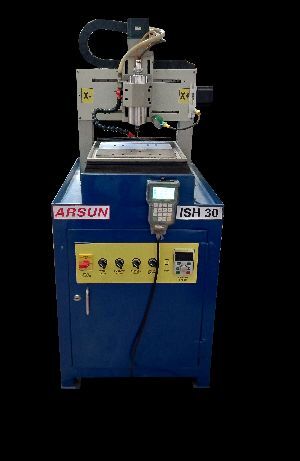

CNC ENGRAVING MACHINE - ISH 30

ARSUN ISH Series of CNC Engraving machines are best economic solution with powerful performance.
Features :

Economical yet powerful performance.
DSP CNC Controller : hand-held type.
Use of STANDARD G-codes & M-codes for 3D operations.

Fixed gantry-Moving table type: The machine is a ‘fixed gantry-moving table type’, comprises of a well-ribbed base with integral bed-ways, thick walled fixed gantry and a moving work-table. All these major parts are made of low vibration cast iron, and the whole machine is fixed on heavy-duty steel structure for rigidity and stability. Through its sturdy well-built construction and by using of ball-screws and linear guides a vibration-free smooth performance can be achieved while working.
Capable of 2D & 3D engraving : The machine is capable of 2D and 3D engraving and micro milling on most of the material like – Carbon Steel, (EN series, WPS), C.I., Aluminum, Copper, Brass, Bronze, Silver, Gold, Graphite, Wood, Plywood, MDF, Fiber, Acrylic, Nylon and other plastics material.Applications :  Manufacturing of dies, moulds, punches, electrodes for spark erosion, printing-cutting and embossing dies & tools, vacuum forming dies, solid models, control panel plates, name plates, sign making, gift articles, mementos, engraving for rubber stereos, light milling work, etc.
Standard Equipment :

DSP CNC Controller
Machine Lamp
Coolant Pump & Tank 2 sets
Collets 5 nos.
Mounting Pad 4 nos.
Tool Kit
User Manual

Optional :

Rotary Axis
Servo Motors & Digital Servo Drives
Ground Ball Screws
